The ‘Ridiculous’ American Halftrack That Fired 2,000 Rounds Per Minute At German Infantry D
1943, the White Motor Company factory, Cleveland, Ohio. A halftrack rolls off the production line with something bolted to its rear bed that does not belong on any troop carrier ever built. 450 caliber Browning machine guns paired two on each side, mounted on a powered turret that can spin a full 360° and elevates straight up to 90°.
The guns are fed by drum magazines the crews will come to call tombstones. 200 rounds each, 800 rounds ready to fire at any given second. The combined cyclic rate of those four barrels is roughly 2,000 rounds per minute. At full output, the vehicle carries approximately 8 minutes of ammunition. 8 minutes.
For a weapon that was never supposed to fire at anything on the ground, it looked absurd. It looked like a machine built to do one job for a very short time and then run out of everything it needed to keep fighting. It would go on to serve in North Africa, Italy, France, Belgium, Germany, and the Pacific.
It would defend the most important bridge in the European War. It would be turned against massed infantry and destroy formations so completely that American soldiers gave it a name no official manual ever printed. It would fight again in Korea. 5 years after the war it was built for had ended and it would earn that name all over again.

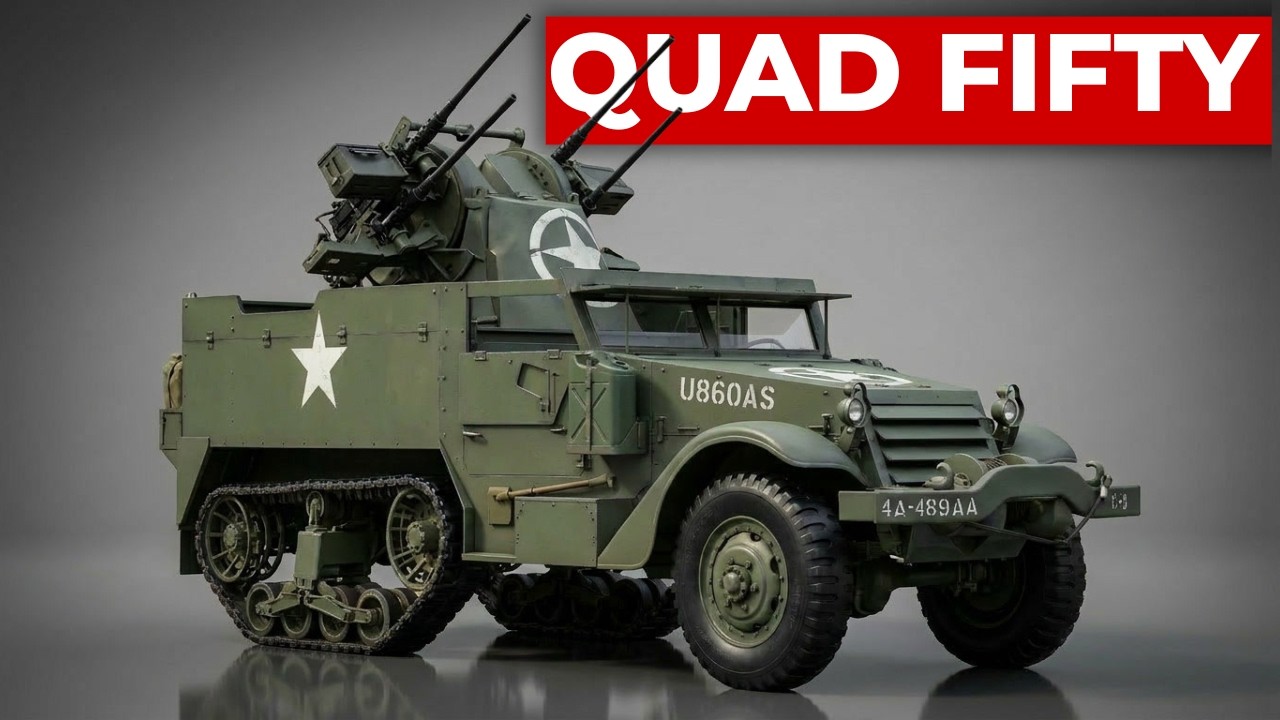

Its official designation was the M16 multiple gun motor carriage. The men who crewed it called it the meat chopper and it was the most devastating close-range fire support weapon the United States Army fielded in the Second World War. To understand why the M16 existed, you need to understand the problem the United States Army faced in 1942.
American armored columns were fast. They could outrun their own air cover. And when the Luftvafa caught them in the open, there was nothing between a messmitt and an American tank crew except whatever the column could throw into the sky from ground level. The army needed a mobile anti-aircraft platform that could keep pace with armor, engage low-flying aircraft with enough volume of fire to matter, and do it all without slowing down the advance.
The answer started with the M13, a halftrack mounting 250 caliber Brownings on a Maxon twin mount. It entered service in early 1943. It was not enough. Two guns could track a diving stooker, but two guns could not fill enough sky to guarantee a kill. The WL Maxon Corporation of New York had the solution.
Their M45 quad mount placed four air cooled M2HB Brownings on an electrically powered turntable. Driven by a small auxiliary generator, the crews nicknamed the lawn mower engine. The mount could traverse at up to 60 degrees per second. It could depress to minus 10 degrees and elevate to plus 90 straight overhead.

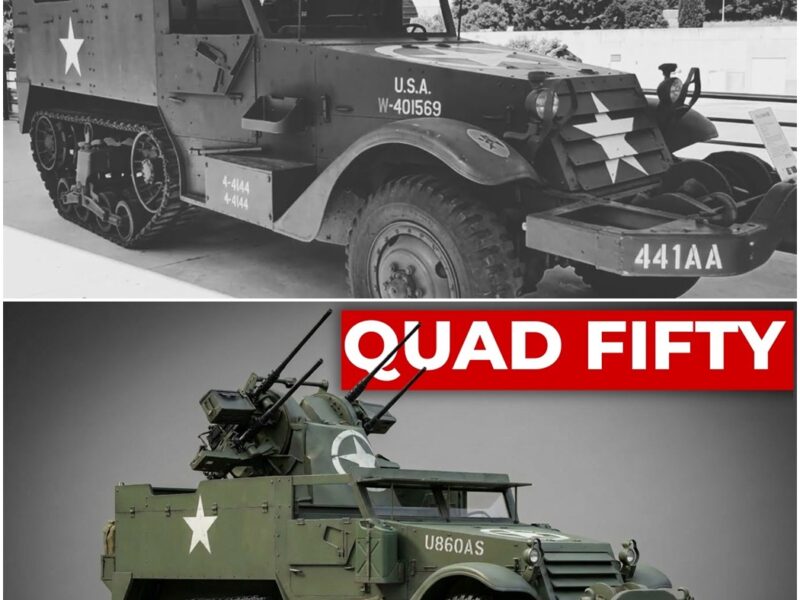

Each gun cycled between 450 and 575 rounds per minute. Four of them together produced a converging cone of half-in steel core projectiles that could reach out to an effective anti-aircraft range of roughly 1,000 m. The vehicle itself was built on the M3 halftrack chassis, 21 ft 4 in long, 7’1 in wide, combat weight just under 10 tons.
A white 160 AX inline 6 gasoline engine produced 128 horsepower, enough to push the vehicle to a top road speed of just under 42 mph. Armor was thin, a/4 in of face hardened plate on the front and sides, enough to stop rifle fire and shrapnel, but nothing heavier. The hull sides were hinged so they could fold down, giving the guns a clear field of fire at ground level, a design feature that would prove far more important than anyone anticipated.
The crew was five, a driver, a vehicle commander, a gunner, and two loaders. In practice, crews in the field often operated with as few as three. White Motor Company built 2,877 new M16s. Between May 1943 and March 1944, another 677 were converted from older M13s and prototype T101s. Total production reached roughly 3,500 vehicles.
In less than a year, the United States had manufactured more self-propelled anti-aircraft halftracks than Germany would produce of all its flak panza variants combined for the entire war. The vehicle was ready. The war it was designed for was about to change. Now, before we get into where the meat chopper actually fought and what it did to the men who faced it.
If you are enjoying this deep dive into American wartime engineering, hit subscribe. It takes a second, costs nothing, and helps the channel grow. The M16 first saw combat at Antio in April of 1944, doing exactly what it was built to do. Luftwaffer fighters and dive bombers hammered the beach head and the Quad50s answered.
Crews tracked aircraft across the sky and four streams of tracer converged on targets moving at 300 mph. It worked. The M16 could kill aircraft, but the M16’s real war began 2 months later in Normandy, and it began because the enemy it was designed to fight stopped showing up. By July of 1944, Allied air superiority over France was so complete that the Luftvafer rarely appeared in daylight.
Entire anti-aircraft battalions sat idle behind the advancing columns. Their guns pointed at empty sky. Crews began asking a question that no training manual had anticipated. What happens if we point these guns down? What happened was carnage. The 50 caliber Browning fires a round that weighs over 700 grains at nearly 2900 ft pers.
A single round can penetrate brick walls, earthworks, and the armor of light vehicles at combat ranges. Four of them firing simultaneously, create a volume of destruction that no infantry unit in 1944 was equipped to survive in the open. The hedge of Normandy, which had stalled Allied infantry for weeks, could be shredded by sustained quad 50 fire.
Machine gun nests that held up rifle companies for hours were silenced in seconds. The M16 became a ground support weapon. Not by doctrine, not by design, by necessity. And by the time the army formally acknowledged the transition in official anti-aircraft artillery notes published in January of 1945, every crew in France already knew what the vehicle really was.
The most concentrated combat the M16 ever saw came at Remigan in March of 1945. On March 7, American troops of the 9inth Armored Division captured the Ludenorf bridge across the Rine, the only intact crossing left in Germany. The Germans threw everything they had at destroying it. 367 Luftvafa aircraft attacked the bridge over the following 10 days, including Fauler Wolf 190 fighters, Messmid 109 fighters, Messid 262 jets, and Ardo 234 jet bombers.
The 482nd anti-aircraft artillery automatic weapons battalion was the first AAA unit on the bridge head. Its lead halftrack was the 13th vehicle to cross the bridge. Within hours, batteries of M16s and M15s were dug in along both banks of the Rine. their guns covering the narrow gorge above the river.
Every German aircraft that dove toward the bridge had to fly through converging streams of 50 caliber fire from dozens of halftracks positioned at the water’s edge. On March 8 alone, three Stookers and a Fauler Wolf 190 were shot down by the 482s vehicles. Over 10 days, the battalion was credited with destroying 22 German aircraft.
In total, 106 of the 367 attacking aircraft were shot down. Not a single bomb hit the bridge. Three months earlier, the M16 had already proven itself in the ground roll during the Battle of the Bulge. When the German offensive broke through the Arden in December of 1944, M16s of multiple anti-aircraft battalions, including the 482nd, the 467th, the 110th, and others were thrown into the ground battle.
Charlie Battery of the 482nd was deployed at Longvill alongside Task Force Harper of the 9th Armored Division’s Combat Command Reserve. On December 18th and 19, as the German 26th Vulks Grenadier Division pressed toward Baston, the Quad50s fired directly into advancing infantry formations.
According to the battalion’s official history, gun sections distributed every round of Reserve ammunition and were ordered to hold their positions at all costs. In the Pacific, smaller numbers of M16s served with the 209th Anti-aircraft Artillery Battalion on Luzon in 1945 and with Army and Marine units on Okinawa. Against Japanese infantry, the Quad50 proved equally devastating, particularly against banzai charges where volume of fire at close range determined whether a position held or was overrun.
And then Korea, the M16 had been declared limited standard by 1950, a weapon waiting to be retired. But when Chinese and North Korean forces launched mass infantry assaults against United Nations positions, the Meat Chopper was pulled back into service. At the Chosen Reservoir in late November of 1950, a platoon of Battery Dog, 15th Anti-aircraft Artillery Automatic Weapons Battalion, fought with four M16s and four M19s as part of Task Force Faith.
Under successive nights of human wave attacks by the Chinese 80th Division, ammunition ran so low that gunners were forced to fire only two of their four barrels per burst to conserve rounds. The column was eventually overrun on December 1, but the 80th division was rendered combat ineffective. The weapon had done its work even in defeat.
Veteran Bert Cigard, who served with a Korean War AAA unit, later described the Quad 50 against masked infantry as a truly terrible force, going over the hills like a vacuum cleaner. On paper, the German Flack Panza 4 verbal wind looked superior. 420 mm autoc cannons mounted on a Panzer 4 chassis with real armor protection and high explosive shells that outrange the 50 caliber Browning by a significant margin, but Germany built roughly 100 Wblewinds for the entire war.
The United States built 3,500 M16s in under a year. The Wblewind was a better anti-aircraft weapon per vehicle. The M16 was a better weapon per war. The British relied primarily on towed bowor’s 40mm guns and Crusader anti-aircraft variants mounting 20 mm olicons of which approximately 600 were produced.
Effective against aircraft but never adapted to the ground support role with the same deliberate ferocity as the American Quad50. The Soviets received 1,000 M17 variants, the M45 mount on the international harvester M5 halftrack under lend lease. And according to multiple sources, up to half of the Soviet Union’s mobile air defense forces came to consist of these American supplied vehicles.
The M16 was formally declared obsolete by the United States Army in 1958. The M19 twin 40mm and later the M42 Duster replaced it in armored divisions, but the M45 quad mount itself refused to die. It was stripped from halftracks and bolted onto M35 2 and 1/2 ton trucks for convoy escort duty in Vietnam, where the Quad50 served as a perimeter defense weapon for another decade.
Foreign operators kept the M16 in service even longer. Japan, South Korea, Greece, Turkey, Thailand, and more than a dozen other nations fielded the vehicle well into the Cold War. Israel took the M3 halftrack chassis and rebuilt it entirely, replacing the Quad 50 with twin 20mm Hispanosa cannons to create the TCM20, a vehicle that fought in every Israeli war through the 1980s.
Surviving M16s can be found today at the tank museum in Bovington. The Museum of American Armor in Old Beth Page, New York, the Airborne Museum at Serra Glee in France, and in private collections where restored examples still run. 1943 Cleveland, Ohio. A halftrack rolls off the line carrying four machine guns on an electric turret.
8 minutes of ammunition and a/4 in of armor that would not stop anything heavier than a rifle bullet. It was too lightly armored for frontline combat. It carried too little ammunition for sustained engagements. It was designed for a mission that became irrelevant within months of its arrival in theater.
Its crew sat in an open topped hull with no overhead protection, exposed to every shell fragment and sniper round on the battlefield. And yet it worked. It worked in the hedros of Normandy. It worked on the frozen roads outside Bastonia. It worked at the Ludenorf Bridge where it helped shoot down 106 aircraft in 10 days.
It worked in the jungles of Luzon and on the frozen ridgeel lines of Korea where men who had never trained to fight infantry discovered that 450 caliber Browning solved problems that entire rifle companies could not. The M16 was not built to fight soldiers. It was built to fight aircraft.
The soldiers who crewed it rewrote its purpose on the battlefield, and the enemy who faced it gave it the only name that mattered. The meat chopper was not doctrine. It was not strategy. It was what happens when you give resourceful men an overwhelming weapon and then run out of the enemy it was designed for. That is not engineering. That is the American way of
