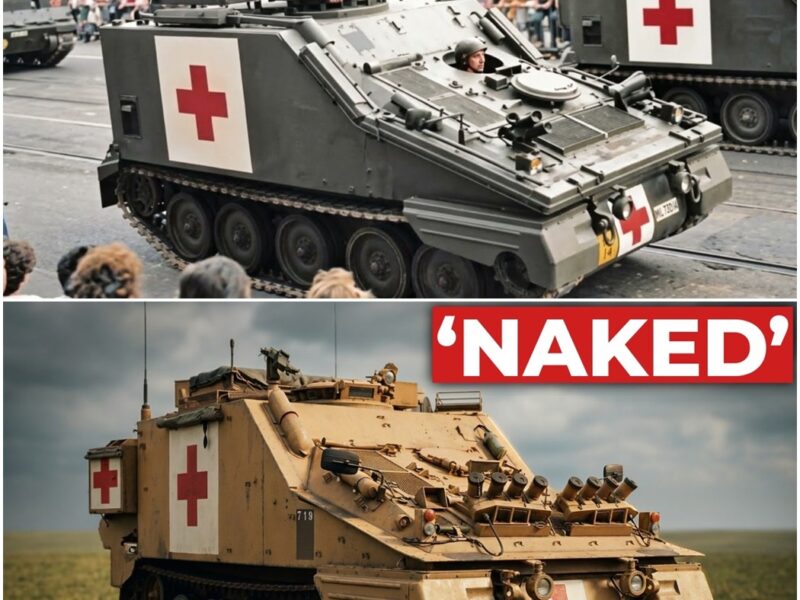

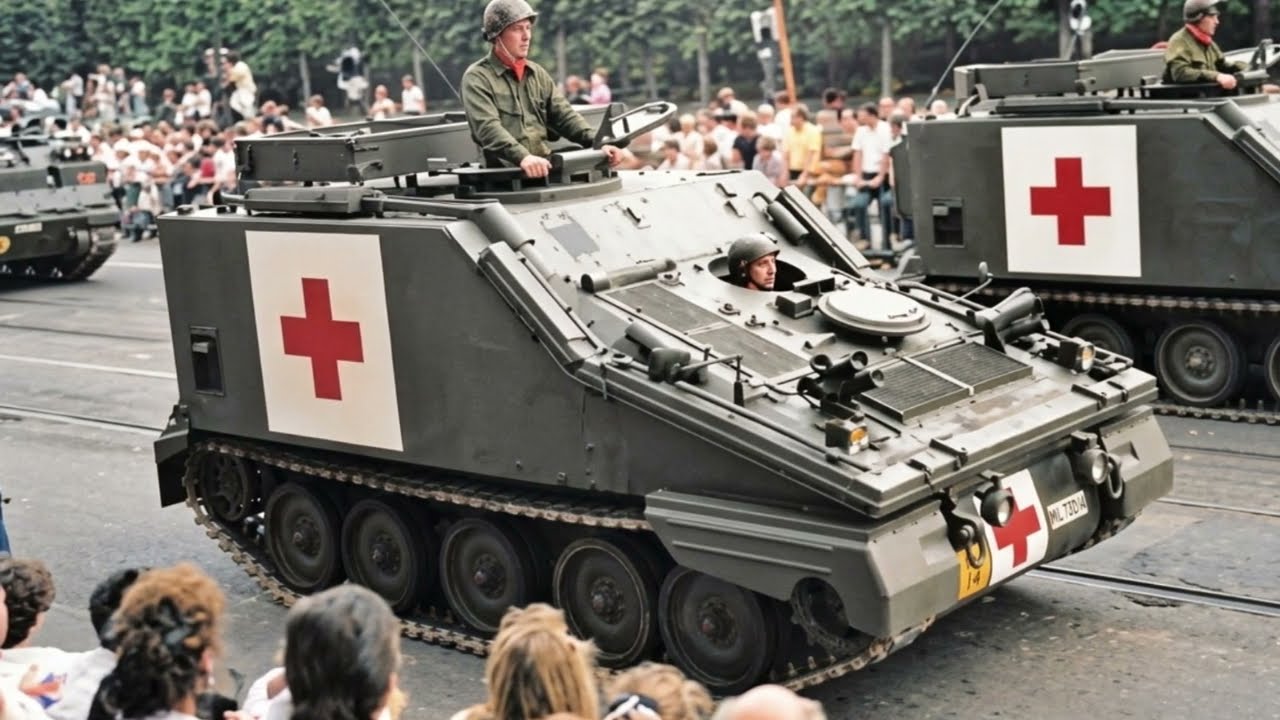

1978, the Alvis factory, Holyhead Road, Coventry. A tracked vehicle rolls off the production line and onto the concrete apron outside the paint shop. It is small, absurdly small, barely 5 m long and just over 2 m wide. It weighs less than 9 tons, lighter than a loaded commercial truck.
Its hull is not steel, it is aluminum. Its turret ring is empty because there is no turret. Where the 76-mm gun of the Scorpion should sit, there is a raised box of flat armor plate bolted on like an afterthought with red cross markings on every face. It carries no cannon, no machine gun, no anti-tank missile.
Its only concession to violence is a bank of four smoke grenade dischargers on the front right hull. Inside, where ammunition racks and gun breeches should be, there are stretcher rails, oxygen bottles, and a medical stores locker barely large enough to hold a weekend camping kit. It looks like an armored shoebox with tracks.
It looks like somebody took a real fighting vehicle, stripped everything dangerous out of it, and sent it to war naked. It would go on to serve on three continents, deploy to five major conflicts, evacuate wounded soldiers under direct fire in the deserts of Kuwait, the frozen streets of Sarajevo, the blast craters of Helmand, and remain in continuous British military service for nearly half a century.
Its designation was the FV104 Samaritan, and it was the smallest, lightest, and most forgotten armored ambulance NATO ever fielded. To understand why the Samaritan existed, you need to understand the problem Britain faced in 1967. The British Empire was contracting. Garrisons east of Suez were closing.
The 1957 Defense White Paper had committed Britain to a new strategy, a mobile reserve based in the United Kingdom and West Germany that could be flown to trouble spots anywhere in the world at short notice. That strategy demanded vehicles light enough to fit inside a Hercules C-130 transport aircraft.
Two vehicles per aircraft was the requirement. That meant a maximum combat weight of 8 tons per vehicle. the existing fleet could not do it. The Saladin armored car weighed 11 tons. The FV432 armored personnel carrier weighed over 15. Nothing in the British inventory was light enough, fast enough, and versatile enough to be flown across the world and fight on arrival.
The answer was a single aluminum tracked chassis designed by Alvis in Coventry that could be re-bodied into seven different roles. Reconnaissance vehicle, anti-tank launcher, armored personnel carrier, command post, recovery vehicle, and ambulance. Every variant shared the same hull, the same suspension, the same engine, the same tracks.
Every name began with the letter S. The gun vehicle was named Scorpion. The ambulance was named Samaritan after the biblical parable of the man who stopped to help the wounded when everyone else walked past. The vehicle itself was a masterpiece of calculated compromise. The hull was 7039 aluminum alloy welded throughout offering protection roughly equivalent to 25 mm of sloped steel, enough to stop 7.
62 mm armor-piercing rounds and shell splinters, not enough to stop a heavy machine gun, an auto cannon, or a rocket-propelled grenade. The designers accepted that trade deliberately. Protection against every threat would have meant a vehicle too heavy to fly, too slow to keep up with the reconnaissance screen, and too wide for the medieval streets of a European town.
What they built instead was a vehicle that could survive the things most likely to hit it and outrun the things that could kill it. The original engine was extraordinary. It was a Jaguar J60, a militarized version of the same 4.2 L straight-6 that powered the Jaguar XJ6 saloon and the E-Type sports car.
190 horsepower in a vehicle weighing under 9 tons gave a power-to-weight ratio that most main battle tanks could only envy. Top road speed was 72.5 km/h. Operational range was 483 km. Ground pressure was so low that the Samaritan could cross peat bogs and paddy fields that would swallow a wheeled ambulance to its axles.
From 1988 onward, the Jaguar petrol engine was replaced under a life extension program with a Cummins BTA 5.9 L turbocharged diesel, solving the fuel consumption and fire risk problems that had plagued the petrol variant since the beginning. The crew was two, a driver and a medical orderly. The rear compartment could carry up to four stretcher casualties or up to six seated wounded or a mixed load with one medic attending in transit.
According to Army Guide technical data, the interior was cramped even by British standards, but it was armored, it was tracked, and it was fast. In the arithmetic of battlefield medicine, those three facts mattered more than leg room. Now, before we get into where this vehicle actually fought and how it performed under fire, if you are enjoying this deep dive into British military engineering, hit subscribe.
It takes a second, costs nothing, and helps this channel grow. The Samaritan entered service in 1976, and its primary Cold War role was supporting British Army of the Rhine armored reconnaissance regiments in West Germany. The medical evacuation chain was planned to run forward from the Samaritan to the FV432 ambulance, then to a field ambulance unit, then to a field hospital.
The Samaritan was the only fully tracked British armored ambulance fast enough to keep pace with the Scorpions and Scimitars at the front of an armored advance. That capability, speed under armor at the point of contact, was the entire reason it existed. It never fired a shot in anger during the Cold War.
It was never supposed to, but when the Cold War ended, the wars that followed were nothing like the ones it had been designed for. In 1991, during Operation Granby, the Samaritan went to war for the first time. The 16th/5th The Queen’s Royal Lancers, the divisional reconnaissance regiment for 1st United Kingdom Armoured Division, deployed with four Samaritans alongside 36 Scimitars, 16 Strikers, and 12 Spartans.
A squadron of the 1st Queen’s Guards deployed with one Samaritan, one Samson recovery vehicle, 16 Scorpions, four Spartans, and two Sultans. During the 100-hour ground war, Samaritan crews painted black inverted V recognition chevrons on their hulls, but kept their red cross markings visible. Casualty rates during Granby were mercifully low, but the Samaritan’s high speed and low ground pressure proved their worth in the broken terrain beyond the Wadi al Batin, where wheeled vehicles bogged down and tracked ambulances did not. Then came the Balkans. In 1992, British forces deployed to Bosnia under the United Nations Protection Force, and Samaritans went with them. Painted in UN white with oversized red crosses, they operated in the narrow medieval streets of central Bosnian towns, where the much larger FV432 could barely fit between buildings in Vitez, in Sarajevo, in the freezing valleys where sniper fire came from hillsides that overlooked every road.
The Samaritan’s compact dimensions, which seemed like a limitation in the open plains of northern Germany, became its greatest advantage in the urban nightmare of the Yugoslav Wars. Crews from 1 Close Support Medical Regiment, Royal Army Medical Corps, supported these operations across successive mandates, from the United Nations Protection Force through the Implementation Force and the Stabilization Force, and then into Kosovo in 1999.
In March 2003, the Samaritan deployed again, this time to Iraq under Operation Telic. The Household Cavalry’s D Squadron and the 1st Queen’s Dragoon Guards took Samaritans into advance from Kuwait toward Basra, but as the campaign turned from armored advance to urban counterinsurgency, the Samaritan’s thin aluminum hull became a liability.
The FV432, Bulldog and Warrior infantry fighting vehicle, took over most ambulance duties in the close streets of Basra, where roadside bombs and rocket-propelled grenades demanded heavier protection than the Samaritan could offer. The vehicle’s final combat chapter was written in Afghanistan.
By 2010, the entire CVR T fleet was showing its age against the improvised explosive device threat in Helmand province. The Ministry of Defense authorized a 30 million pound urgent operational requirement to rebuild the most critical CVR T variants on mine blast attenuated hulls. BAE Systems at Telford and the Defense Support Group at Donnington stripped existing vehicles down to components and rebuilt them on new aluminum hulls with redesigned floors, energy absorbing crew seats, and improved driver escape hatches. Four re-hulled Samaritans designated Mark II were among the first CVR T Mark II vehicles deployed to Helmand in August 2011 with the 9th 12th Royal Lancers. A 35-year-old design re-engineered against a threat its original designers never imagined, sent back to war one more time. It is worth noting what the Samaritan did not do. Despite persistent claims in some popular sources, no Samaritan was deployed to the Falkland Islands in
1982. The Blues and Royals task force on the Falklands consisted of four Scorpions, four Scimitars, and a single Samson recovery vehicle. Multiple sources, including Think Defense, HistoryNet, and Imperial War Museum records, independently confirm this. Casualty evacuation in the Falklands was conducted by stretcher parties on foot, by BV202 Snowcat, and by helicopter.
The Samaritan stayed in Germany. On paper, the American M113 ambulance variant looked superior. It was heavier at roughly 11 tons, wider, roomier, and fully amphibious without preparation. It could carry four litter patients with more working space for the attending medic. The FV432 ambulance, the Samaritan’s own stablemate in British service, weighed over 15 tons with a steel hull and could carry four stretchers or a mix of two stretchers and five seated casualties.
Both offered more internal volume and better protection. In practice, the The offered something neither rival could match. It could keep pace with a scorpion reconnaissance screen advancing at over 70 km/h across broken ground. It could follow the lead vehicles into contact, recover casualties under fire, and extract before the enemy could react. The M113 was too slow.
The FV432 was far too slow. The Samaritan was not designed to replace either of them. It was designed to fill the gap between the point of wounding and the point where heavier ambulances could safely operate. That gap, measured in minutes and meters, was where soldiers bled to death.
The CVR(T) family as a whole was formally retired from front-line British service in 2023 with the withdrawal of the last Scimitars. In May 2024, Minister of State for Defense Procurement James Cartlidge told Parliament that the British Army’s entire CVR(T) active fleet totaled 114 vehicles, all in the disposal process. The planned replacement, the Ajax armored vehicle program, originally included an ambulance variant in its block two specification.
In September 2014, the Ministry of Defense ordered 589 block one vehicles and stated it had no plans to order any block two vehicles. The ambulance variant was canceled before it was ever contracted. Today, the British armored ambulance fleet is a patchwork. FV432 Bulldog conversions, BVS10 Viking ambulances for the Royal Marines, Mastiff ambulances procured under an urgent operational requirement for Afghanistan, wheeled Mastiff and Ridgeback variants.
None has the Samaritan’s narrow tracked cross-country agility. No dedicated light tracked armored ambulance exists in the British order of battle. The capability gap is real and it remains unresolved. The Samaritan story did not end with British retirement. In 2022, Ukrainian volunteer organizations purchased two FV104 Samaritans from United Kingdom surplus markets and shipped them to the front lines.
In May 2024, Russian motorized rifle troops of the Vostok grouping captured one of them damaged near Novo Mikhailovka in Donetsk. It was shipped to Moscow and displayed on Poklonnaya Hill alongside other captured Western equipment. A vehicle built in Coventry in the 1970s designed to evacuate British soldiers on the plains of northern Germany now sits in a Russian Victory Exhibition 5,000 miles from the factory where it was born.
Meanwhile, Latvia, which purchased over 120 CVR(T) vehicles from Britain under a 2014 contract, has been donating examples including Samaritans to Ukraine in packages announced in 2024 and 2026. The Tank Museum at Bovington holds at least one running Samaritan that appeared at Tankfest in 2017 and features in the museum’s Ukraine war exhibition opened in spring 2025.
1978, Holyhead Road, Coventry. An aluminum box on tracks rolls off the line with red crosses where the gun should be. It was too small. It was too thin. It carried no weapons. It offered no protection against anything heavier than a rifle round. It had no night vision, no air conditioning, no mine protection in its original form, and an interior so cramped that medics worked on their knees. And yet it worked.
It worked in the sand of Kuwait. It worked in the frozen streets of Sarajevo. It worked in the blast zones of Helmand province. It worked because it was fast enough to reach the wounded before they died. Small enough to fit where heavier vehicles could not go and tough enough to survive the fire that hit it most often.
It was not elegant, not powerful, not famous. It was the vehicle that arrived when a soldier was hit, loaded him onto a stretcher in a space barely wider than his shoulders, and drove him out of the killing zone while rounds struck the hull outside. 50 were built. They served for nearly half a century. No direct replacement exists.
That is not a footnote. That is the difference between a vehicle designed to fight and a vehicle designed to save.
