The ‘Ugly’ South African Truck That Survived Landmines Americans Copied Its Design 30 Years Later D
April, 1979. The TFM plant outside Johannesburg, South Africa. A new vehicle rolls off the line. It is enormous, high-sided, ugly. The hull sits on wheels so tall that a grown man can stand beneath the chassis and still not touch the underside. The body is a single steel capsule angled into a sharp V at the bottom, as if the designer had been trying to build a boat and lost his nerve halfway through.
To the officers watching, it looked wrong. It looked top-heavy. It looked like a truck that would roll over the first time a driver took a corner too fast. One observer called it a monster that belonged in a scrapyard, not a war zone. It had been designed on a budget of 80,000 rand. That was less than the price of the luxury cars parked outside the factory.
It was assembled from Bedford truck components, with the suspension deliberately bolted to the outside of the armored hull, so that any wheel blown off by a land mine could be unbolted and replaced in the field in under 2 hours. Over the next 47 years, vehicles built on this design would serve in more than 20 nations.
They would fight across deserts, jungles, and mountains from Namibia to Kashmir. They would become the direct engineering blueprint for a 45 billion dollar United States defense program that saved thousands of American lives in Iraq and Afghanistan. And the man who designed it would eventually cross the Atlantic to build its American children himself.

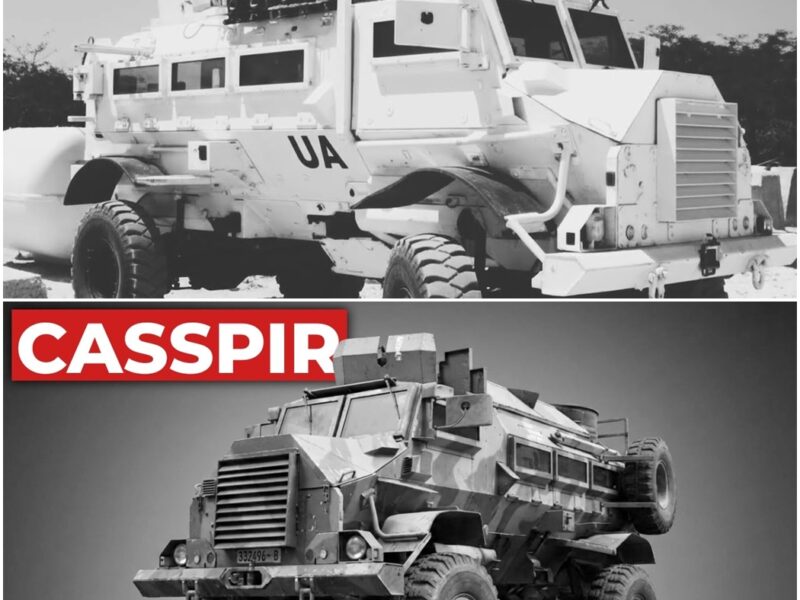

Its name was the Casspir, and it was the first vehicle in history purpose-built to survive a land mine. To understand why the Casspir existed, you need to understand the problem South Africa faced in 1973. The Border War had begun in 1966. It was being fought in South-West Africa, today called Namibia, and in the bush of southern Angola.
The enemy was SWAPO, the South-West Africa People’s Organization, and its armed wing of guerrilla fighters. At a consultative congress in Tanzania in the early 1970s, SWAPO made a strategic decision. They could not defeat the South African Defense Force in open battle, so they would bleed the roads instead.
They would turn every dirt track in Ovamboland into a graveyard. The tools were Soviet TM 46 and TM 57 anti-tank mines shipped through Angola, stake mines to catch anyone who stopped to help the wounded, Yugoslav fragmentation mines that could cut a man in half at 40 paces. The tactics were lethal. In a single year, Portuguese forces in neighboring Angola lost 355 dead and 1,242 injured to land mines alone.
The South African police and army were losing trucks. They were losing men. They were losing faster than they could replace either. The answer came from a workshop in Pretoria, the Council for Scientific and Industrial Research, known as CSIR, had been working on mine-protected vehicles since 1972. The lead engineer was Dr.
Vernon Joint. His team tried sandbags. They tried water-filled tires. They tried bolt-on steel plates. Nothing worked reliably. Then Joint did the mathematics on a V-shaped hull. In November of 1973, his team detonated a 21 kg TNT charge under a prototype called the Hyena. Two men sat inside when the fuse went off.
They walked out with cuts and a perforated eardrum. The V hull had channeled the blast wave outward at the angle of incidence, venting almost all of the energy sideways and up into the air. The physics were proven. Now came the vehicle. The South African police placed the order in 1978. The first Casspir prototype rolled out in April of 1979.
The name was an anagram, CSIR plus SAP, the South African police, scrambled together by a researcher named Eddie Coromba. The numbers were uncompromising. 12 and 1/2 tons of combat weight, 6.87 m long, over 400 mm of ground clearance beneath the axles, a turbocharged diesel engine producing 170 horsepower at the later marks, top speed of 90 km/h, range of 850 km without refueling, crew of two plus 10 to 12 troops in the back.
But the numbers that mattered were the survivability ratings. The Mark II and Mark Casspirs were certified to survive a triple TM 57 detonation under any wheel. That is 21 kg of TNT going off directly beneath the vehicle. The crew would be shaken. The vehicle would be driven home. Every feature was an answer to the land mine.
The hull was a single monocoque steel capsule, so there were no bolted seams for a blast wave to prize open. The V angle was steep enough to reflect pressure outward, shallow enough to keep the vehicle stable. The suspension modules were mounted deliberately outside the armor envelope, so that when a wheel was destroyed, the crew compartment remained intact.
The driver sat in the tip of the V, above the axles, twice as far from the blast as he would have been in a conventional truck. The windows were 52 mm of ballistic glass. The fuel tanks were protected. The floor was raised. It looked ridiculous, but every line of the design had been drawn by a man who had already watched the alternative bury his friends.
Before we get to where the Casspir actually fought, and to the American engineer who copied it wholesale 30 years later, if you are enjoying this deep dive into military engineering history, hit subscribe. It takes a second, costs nothing, and it helps the channel grow. On the 11th of January, 1979, just weeks before the first Casspir rolled off the production line, a new South African counter-insurgency unit was founded at Oshakati in northern South-West Africa.
Its official designation was Operation K. Its nickname was Afrikaans Koevoet, the crowbar. Koevoet was commanded by Brigadier Johan Dreyer, a veteran police officer with a reputation for ruthlessness. The unit was modeled on Rhodesia’s Selous Scouts. At full strength, it fielded about 42 combat teams, each built around four Casspirs and one Blessbok logistics vehicle.
Each team was commanded by white South African officers and manned mostly by Ovambo constables, many of whom had tracked animals since childhood. Their method was simple and merciless. Trackers on foot would read the spoor left by insurgents crossing the border from Angola. The Casspirs would follow, leapfrogging ahead when the trail hardened, encircling when contact was made. Engagements could last for days.
One spoor was followed for 185 km without interruption. The Casspir was the reason it worked. A Koevoet team could chase an insurgent column through minefields that would have stopped any conventional vehicle dead. Over 50 months, between January of 1978 and March of 1988, South African mine-protected vehicles endured 533 recorded mine detonations.
90 of those involved multiple stacked mines. The total South African death toll from those 533 detonations was 33 men, a casualty rate under 6% in a war that was still killing conventional truck crews by the dozen. One man who lived through it was Arnd Durand. He served with Koevoet from 1981 to 1987. His Mark separate contacts with SWAPO.
Three of those contacts involved direct anti-tank mine strikes on his vehicle. Durand walked away from all three. He later wrote the book Zulu Zulu Foxtrot about it. Another was Sesinyi Kamongo, a Kavango tracker, six years in Koevoet, 50 confirmed firefights. He survived five anti-personnel mine blasts and one direct rocket-propelled grenade hit on his Casspir.
He lived to co-author his memoir and to walk free into an independent Namibia. By the unit’s own records, Koevoet fought 1,615 engagements and was responsible for roughly 3,225 enemy fighters killed or captured. That was about 80% of all SWAPO casualties in the theater. Their own losses were around 151 dead in a force that never exceeded 3,000 men.
It was the most effective counter-insurgency unit of the Border War, and it fought almost exclusively from the back of Casspirs. The defining engagement came in April of 1989. SWAPO fighters launched a final cross-border incursion. It became known as Operation Merlin. Koevoet Casspirs, already mobilizing for demobilization under the Namibian Independence Agreement, were the first units to make contact.
They held the line for 9 days until South African Defense Force battalions could reinforce. It was the last battle of the Border War. Then came 1994. Apartheid ended. The Casspirs’ war did not. The vehicles were transferred to the new South African Police Service, where they became a fixture of public order policing. Export orders rolled in.
Namibia bought 20. Peru bought 20 for its special operations police. India bought about 200 and deployed them against Maoist insurgents and across the disputed Kashmir frontier. Angola bought 61. Djibouti, Indonesia, Nepal, Uganda, Mali, and dozens of other nations followed.

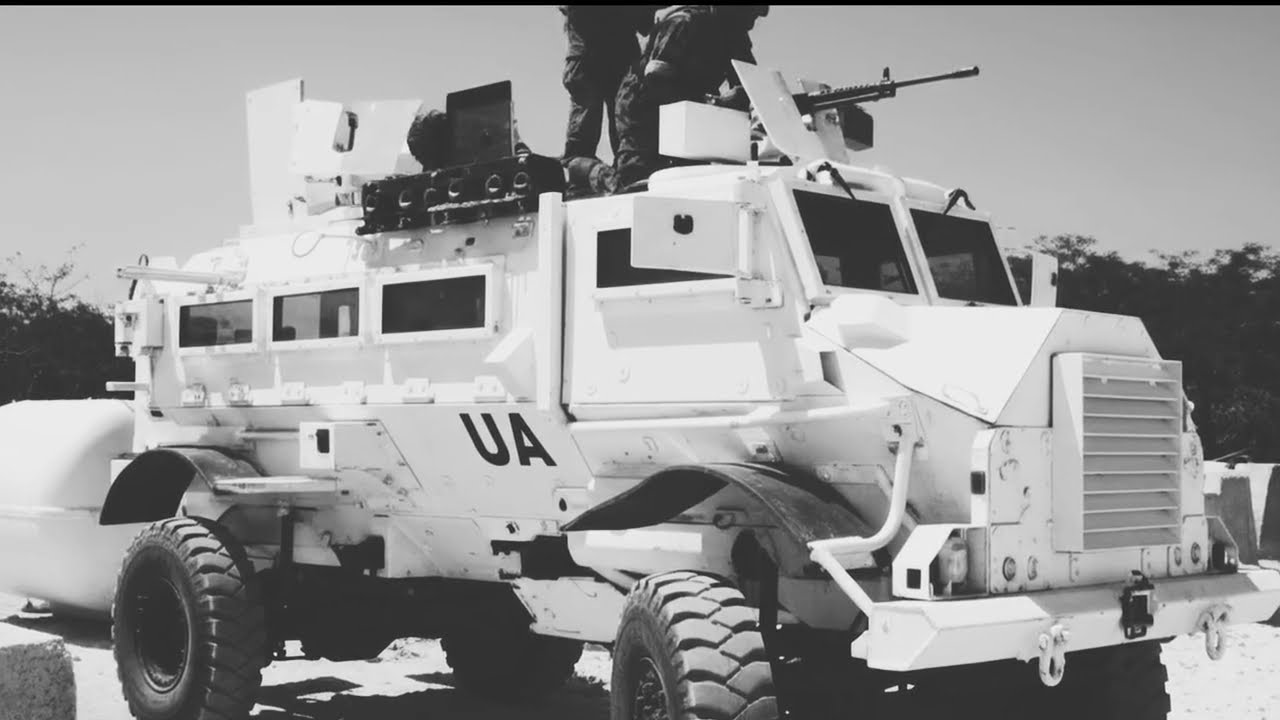

United Nations peacekeepers began using on mine-infested missions in Angola, Bosnia, Mozambique, Sudan, the Democratic Republic of the Congo, Somalia, Western Sahara, and Mali. And then came Iraq in 2003. United States forces invaded Iraq. Within months, the insurgency had discovered the improvised explosive device buried in culverts, wired to cell phones, packed with artillery shells.
The IED became the single deadliest weapon on the modern battlefield. Roughly half of all United States combat deaths in Iraq came from IEDs. American troops were riding in Humvees, flat-bottomed, thinly armored. The survival rate for a Humvee crew hit by a buried artillery shell was catastrophic.
In February of 2005, a United States Marine Corps Brigadier General submitted an urgent for 1,169 mine-protected vehicles. The request was frozen inside the Pentagon bureaucracy by August of that same year. It sat there while men died. In December of 2006, Robert Gates became Secretary of Defense.
In May of 2007, he wrote that the mine resistant program was to be considered, in his own words, the highest priority Department of Defense acquisition program. At a press conference in June of that year, Gates delivered the line that would define the program. “For every month we delay,” he said, “scores of young Americans are going to die.
” When the Pentagon finally moved, it did not reinvent the wheel. It bought South African designs. A small defense company in North Charleston, South Carolina, called Force Protection, had been working on mine resistant vehicles since the early 2000s. Its founder was Garth Barrett, a Rhodesian special forces veteran who had worked alongside Dr.
Vernon Joint at CSIR decades earlier. In 2004, Joint himself crossed the Atlantic. He became chief technology officer at Force Protection. The South African who had designed the Casspir now designed its American successors personally. The Cougar was derived from the Lion family of vehicles built by Mechem in South Africa.
The Buffalo came from the same bloodline. And the most produced American mine resistant vehicle of all, the Navistar MaxxPro, was designed by engineers who, by their own admission, began by studying the Casspir, the Mamba, and the Hippo. On paper, the Casspir should never have been necessary.
The world’s great armies already had armored personnel carriers. They simply had the wrong ones. The American M113, fielded since 1960, was a flat-bottomed aluminum box. When a mine detonated beneath it, the blast wave was funneled directly into the crew. United States Army records from Vietnam describe M113 mine strikes that resulted in the complete destruction of the vehicle and its crew.
14 gunners died under a single M113 at Ap Bac in January of 1963. The Soviet BTR series, the backbone of the Warsaw Pact, had the same problem. Flat belly, thin steel. When Soviet troops deployed to Afghanistan, they rode on top of their BTRs rather than inside because the roof was safer than the floor.
At Grozny in 1994, one Russian brigade lost 102 of its 120 armored vehicles to a combination of mines and rocket-propelled grenades in a matter of weeks. The British Saracen and Saxon, the German Fuchs, the French VAB, all flat-bottomed, all vulnerable. NATO doctrine had prioritized speed, weight, and amphibious capability.
Nobody in Europe had seriously planned for a war dominated by buried explosives. Ironically, the one nation the world had spent decades sanctioning had spent those decades solving the problem. Arms embargoes against apartheid South Africa forced South African engineers to build everything themselves in isolation against a genuine landmine threat.
They built something the rest of the world was forced to re-import after 2003. Approximately 28,000 mine resistant vehicles were built for United States forces between 2007 and 2012. The total program cost was around $45 billion. Secretary Gates stated flatly in 2011 that thousands of American troops were alive because they had been riding in them.
Deputy Secretary of Defense Ashton Carter said the vehicles had made troops as much as 14 times more likely to survive an IED blast than they would have been in a Humvee. Every one of those American vehicles traced its V-hull in a direct unbroken engineering line back prototype that had been detonated in the South African bush in November of 1973.
Today, Casspirs still serve with the South African Police Service. Around 370 remain with the South African Army. They are preserved at the Apartheid Museum in Johannesburg and at the Armor Museum in Bloemfontein. They appeared in the feature film District 9. In 2016, the South African artist Ralph Ziman covered an entire decommissioned Casspir in 70 million glass beads hand-sewn by Ndebele and Zimbabwean craftswomen and turned the most feared vehicle of the Border War into a touring work of peace.
April 1979. The TFM plant outside Johannesburg, the vehicle rolling off the line was ugly. It was top-heavy. It was slow. Its suspension was bolted to the outside of the hull. It had no night vision. It had no nuclear, biological, or chemical protection. It was a crude truck built on a budget smaller than the price of the luxury cars in the officers’ car park from parts borrowed from a commercial Bedford lorry.
And yet it worked. It worked in Ovamboland. It worked in Angola. It worked in the deserts of Peru and the jungles of India and the mountains of Kashmir. It worked for United Nations peacekeepers in Mali and Mozambique. It worked for an American defense program in Iraq and Afghanistan.
Built by the same man on the same principles with the same V at the bottom. The Casspir was not elegant. It was not sophisticated. It was not cheap to ship and it was not pretty to photograph. It was simply the first vehicle in history that a man could drive over a Soviet anti-tank mine and climb out of afterward. 28,000 American vehicles and $45 billion later, the world finally caught up with what a few engineers in a Pretoria workshop had already built in 1979.
