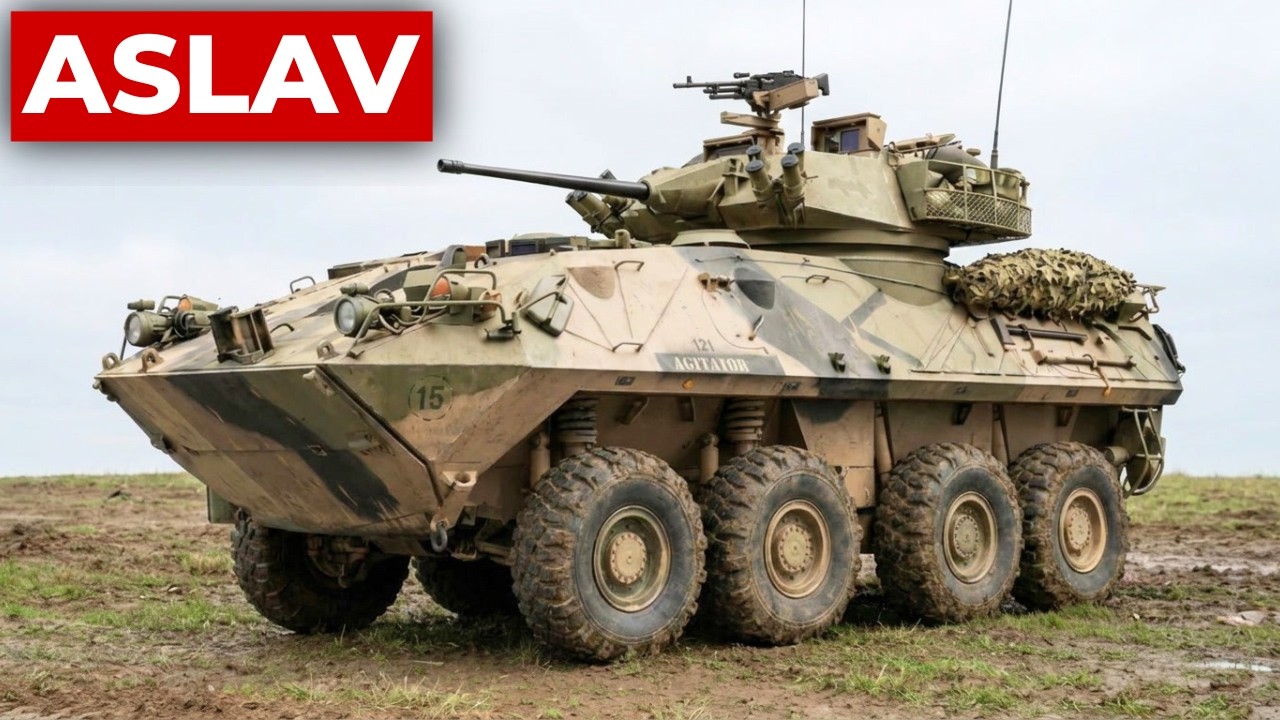

The ‘Forgotten’ Australian Recon Vehicle That Survived Every Ambush While Heavier Armor Failed D
1989, a military proving ground in the red dust of northern Australia, a vehicle rolls out of a transport aircraft and drops onto the dirt. It is not a tank. It has no tracks. It rides on eight fat rubber tires, sits low to the ground, and moves with an ease that looks wrong for something armored.
Officers standing at the perimeter are skeptical. The thing looks like an armored personnel carrier somebody dressed up in a reconnaissance uniform. It is too light. It swims. It drives. It does everything. They call it the ASLAV. The Australian Light Armoured Vehicle. The critics said it was underpowered.
They said it was too lightly protected for sustained combat. They said wheels had no place doing a tracked vehicle’s job in a serious fight. They said Australia was making a mistake. Over the next two decades, this vehicle would deploy to East Timor, Baghdad, southern Iraq, and the mountains of Uruzgan Province in Afghanistan.
It would survive vehicle-borne bombs, improvised explosive devices, rocket-propelled grenades, and deliberate ambushes across two wars and two decades of continuous operational service. Only one ASLAV crewman was killed inside his vehicle. Every other crew walked away. This is the ASLAV, and for 30 years, it was the most capable light armored vehicle Australia ever put in harm’s way.
To understand why Australia chose the ASLAV, you need to understand the problem the Australian Army faced in the 1980s. Australia’s strategic geography is unlike any other country’s. The continent’s northern approaches stretch across thousands of kilometers of open coastline and sparse terrain.
Defending them required a vehicle that could screen enormous distances at speed, operate without a heavy logistics train, and arrive in a distant theater fast enough to matter. A tracked vehicle could do the fighting. Only a wheeled vehicle could do the moving. The vehicle that answered those requirements came from a Swiss drawing board.
The Mowag Piranha, designed in the 1960s by the Swiss firm Mowag Motorwagen Fabrik, was an 8×8 armored hull built around a simple proposition: mobility first, everything else arranged around it. The United States Marine Corps adopted a development of it in the early 1980s as the LAV 25, a reconnaissance and fire support vehicle that proved itself in Grenada and Panama.
Canada built its own version, and in April 1989, Australia bought 15 ex-Marine Corps examples to run trials. The trials were conducted by the 2nd Cavalry Regiment in Northern Australia through 1990 and 1991. The verdict was clear. The wheeled concept worked. The distances were covered. The vehicle performed. The cavalry doctrine held up.
What followed was a three-phase acquisition program that eventually delivered 257 vehicles. The first full production contract was signed in December 1992. By 1997, the 2nd Cavalry Regiment at Darwin was fully equipped. The vehicle that entered service was not simply a copy of the American original.
It was an Australian product in the ways that mattered. The Australian Army took the base LAV 25 hull and reworked it for the environment their crews would actually fight in. The interior of a vehicle operating in Northern Australia can reach 55° C. The ASLAV received air conditioning. The tires were widened, changed to Michelin XML low-pressure cross-country pattern, capable of operating even after puncture on solid run-flat inserts.
The radios were Australian-made Raven systems. The exhaust was rerouted. Storage was expanded. A fridge was fitted. These were not frivolities. In temperatures that incapacitate soldiers within hours, they were operational necessities. The variant structure was built around a concept called the mission role installation kit, a uniquely Australian engineering solution that allowed a single turretless hull to be reconfigured in the field into multiple roles without returning the vehicle to a depot. The reconnaissance variant, the ASLAV 25, carried the 25-mm M242 Bushmaster chain gun in a two-man stabilized turret with a coaxial 7.62-mm machine gun. This was the fighting vehicle. The ASLAV PC was as personnel carrier, moving up to seven soldiers under armor. The ASLAV carried a hydraulically raised surveillance mast mounting a thermal imager, a laser rangefinder, a day camera, and a battlefield surveillance radar capable
of detecting targets at 35,000 m. The command variant was a mobile headquarters. The ambulance carried three lying casualties or six seated. The fitter and recovery variants kept the fleet running. The vehicle’s hull was all welded aluminum with ceramic composite applique armor, providing protection against small arms fire and shell splinters.
With the frontal arc hardened against 30-mm projectiles at combat distances, combat weight was approximately 13,000 kg. The Detroit Diesel 6V-53T turbocharged engine produced 275 horsepower, enough to drive the vehicle to a road speed of 100 km/h. Range was 660 km. The vehicle was originally fully amphibious, propelled through water at 10 km/h by two propellers, and steered by four rudders.
It could be carried by a C-130 Hercules. Bushmaster gun itself was the vehicle’s principal lethality. It fired at selectable rate of 100 or 200 rounds per minute, and its dual feed system allowed the gunner to switch between armor-piercing discarding sabot rounds, accurate to 2,200 m, and high-explosive incendiary rounds effective out to 3,000 m.
A trained gunner could shift between ammunition natures in under a second. Against light vehicles, crew-served weapons, walls, light fortifications, and personnel, it was devastating. According to Lieutenant Colonel Roger Noble, writing in the Australian Army Journal in 2004, the ASLAV represented, in his words, “arguably the best light armored vehicle in the world.
” Noble commanded the first Australian cavalry force to take the vehicle into sustained ground combat, and documented what the platform could and could not do against a real enemy. His assessment was not promotional literature. It was operational experience. The ASLAV’s first operational deployment was East Timor in September 1999, when C Squadron of the 2nd Cavalry Regiment landed vehicles in a burning Dili from the tank landing ship HMAS Tobruk.
The vehicles provided mobility and armored presence in the streets, while the International Force for East Timor stabilized a collapsing capital. They patrolled the border, they escorted convoys, they were the most capable armored assets on the ground in the first critical weeks of the operation. No vehicle was lost. Iraq was different.
When Australia’s Security Detachment reached Baghdad in 2003, the city was already fragmenting. The invasion had succeeded, the peace was failing. The ASLAV crews of the 2nd Cavalry Regiment found themselves conducting armored patrols through one of the most dangerous urban environments on Earth, protecting Australian diplomatic and intelligence personnel in and around the International Zone.
On April 13, 2004, a CCDETASLAV engaged an insurgent mortar base plate that was firing into the Green Zone. It was the first time an Australian vehicle fired 25 mm rounds in anger since Vietnam. Six months later, on October 25, 2004, Lieutenant Garth Callender’s patrol was moving through Baghdad toward the International Zone checkpoint when an insurgent detonated a car packed with artillery shells.
The blast destroyed much of the vehicle. Four soldiers were wounded. Callender himself sustained injuries severe enough that he was listed as Australia’s first serious casualty of the war. He survived. He went back. He wrote about it in his memoir after the blast, published by Black Ink in 2015. Callender describes the moment before the explosion with a kind of clarity that only survivors carry.
Of the blast itself, he writes that he has no recollection, nothing. The vehicle absorbed the explosion. The crew were wounded but breathing. Trooper Matthew Millhouse was knocked unconscious in the same blast. He came to and ran to Callender’s aid. He was awarded a commendation for his actions that day.
He suffered a traumatic brain injury that he carried silently for years. He died on August 28, 2015 of young onset dementia caused by the blast. He is now listed on the Australian War Memorial Honour Roll as a casualty of the Iraq War. Callender became patron of the Matthew Millhouse Salute charity in his memory. The vehicle that absorbed that bomb was still fighting.
Now, before we get into the Overwatch deployments and what happened on Route Bismark in 2007, if you are watching this and finding value in this deep dive into military hardware and the soldiers who operate it, hit subscribe. It costs nothing and it keeps this channel going. In July 2006, Australia’s commitment in Iraq expanded.
The Overwatch Battle Group West deployed to Tallil Airbase in Dhi Qar province with over 500 personnel, roughly 40 ASLAVs and 19 Bushmaster Protected Mobility Vehicles. Their adversary was Muqtada al-Sadr’s Jaish al-Mahdi militia. The operating environment was southern Iraq in summer, a landscape of irrigated farmland, tribal towns, and roads that insurgents had been mining for 3 years.
On April 23rd, 2007, an ASLAV patrol struck an improvised explosive device on Route Bismark near An Nasiriyah. Three soldiers were wounded. Vehicles were damaged. One ASLAV was destroyed. During the recovery operation, its hulk was struck again by a rocket-propelled grenade. The crews were alive.
Defense writer Ian McPhedran reported in the Daily Telegraph on Anzac Day, 25 April 2007, that the bomb which hit the Australian patrol would have destroyed the Humvees used by American forces. That is a journalist’s assessment, not a controlled trial, but it was grounded in something real. By that point in the war, the American Humvee had become a symbol of inadequate protection.
67 American soldiers were killed inside Humvees in just the first 4 months of 2006. A casualty rate so severe, it forced a crash program to procure mine-resistant vehicles. British Snatch Land Land Rovers in Iraq earned an equally grim reputation. The ASLAV was not invulnerable. But across every patrol the Overwatch forces conducted, no Australian soldier was killed in action in Iraq, not one.
The Australian National Audit Office assessed the ASLAV fleet in those years and recorded that defense had been very satisfied with the vehicle’s performance, describing the 50 ASLAVs deployed to Iraq at that time as the best equipped and most capable light armored vehicles in their class. Afghanistan was a different kind of test.
The mountains of Uruzgan province were nothing like the flat roads of Di Car. The Tangy Valley and Chora Valley offered tight terrain, steep gradients, and road surfaces that destroyed lesser vehicles. The Taliban had been watching how improvised explosive devices worked in Iraq. They adapted quickly.
From 2006 onward, Australian ASLAV squadrons deployed in rotating mentoring task forces and reconstruction task forces, protecting convoys, conducting route clearance, mentoring Afghan National Army units, and supporting special forces operations. The vehicle’s wheels, which critics had always cited as a weakness, proved an asset in this environment.
Wheeled vehicles on good surfaces move faster and range further than tracks. And in Uruzgan, where the Australian mission depended on presence and mobility across a province the size of a small European country, that mattered. American forces operating alongside Australians in the Tangy Valley in March 2011 noted that the ASLAV crossed notoriously rough terrain with ease and that Taliban fighters reduced their rate of fire when the vehicles were present and overwatching from elevated ground.
25-mm rounds at range are a deterrent that has nothing to do with whether your hull is aluminum or steel. The vehicle was upgraded progressively throughout both wars. Bar armor, also called slat armor, was welded to the exterior to detonate rocket-propelled grenades before they could strike the hull.
Kevlar spall liners were fitted inside to contain fragmentation. Kongsberg Protector Remote Weapon Stations were installed on personnel carrier and support variants, allowing crew commanders to fire without exposing themselves above the roofline. 59 of these systems were acquired for the fleet.
Much of this work was done in Kuwait or in theater. On October 8th, 2007, Trooper David Pearce of the 2nd/14th Light Horse Regiment was driving an ASLAV on a road about 6 km from Tarin Kowt, returning from an engineering reconnaissance task. The vehicle triggered an improvised explosive device positioned on top of an anti-tank mine.
The combined blast killed Trooper Pearce instantly. His crew commander was wounded. Trooper Pearce was 41 years old. His family called him Poppy. His crew commander, Lance Corporal Michael Crossley, led the pallbearers at the ramp ceremony at Tarin Kowt alongside seven other members of Bravo Squadron of the 2nd/14th Light Horse Regiment.
He was the only ASLAV crewman killed inside his vehicle across both wars. The final Australian ASLAV combat deployment closed in late 2013. Major Patrick Davison, commanding the 2nd Cavalry Regiment Task Force in Uruzgan, reported that the vehicles had flown 58 combat missions between June and early November and covered more than 4,000 km in the province.
They came home. The ASLAV’s rivals tell a story of what the Australian Army chose not to buy. The American Stryker, a later development of the same LAV lineage, entered service in 2002. It was heavier at approximately 19,000 kg, powered by a 350 horsepower Caterpillar engine, and carried a nine-man infantry squad rather than a reconnaissance crew.
It was not amphibious. Its standard armament was a remote mounted heavy machine gun rather than a cannon turret. In pure firepower terms, the ASLAV’s stabilized 25 mm gun was the more capable system for the reconnaissance role. The Stryker was a troop carrier first. The British Scimitar, which served British forces in the same Iraqi battle space, was a tracked light vehicle weighing approximately 8,000 kg with a 30 mm L21A1 RARDEN cannon.
It was low and fast in good conditions. In Basra’s urban environment, its tracks could be damaged by debris. Its range and road speed were significantly lower than the ASLAV’s. Neither was wrong. They reflected different doctrines. The British and Americans needed vehicles suited their own strategic weight and force structure.
Australia needed a vehicle that could range across the top of a continent, embed with special forces, and fight when it had to without a tank regiment behind it. The ASLAV did all of that. Today, the ASLAV is gone. Under Project Land 400 Phase 2, the Rheinmetall Boxer Combat Reconnaissance Vehicle was selected in March 2018 to replace it.
The contract, signed in August 2018, covered 211 vehicles for approximately 4.28 billion Australian dollars. The Boxer is heavier, more heavily armored, and equipped with a Lance 30 mm turret that offers a substantial step beyond the 25 mm Bushmaster. Initial operational capability was declared in June 2022.
The ASLAV was declared non-deployable in its final years because its armor protection no longer met the standards demanded by a threat environment shaped by explosively formed penetrators and larger improvised devices than anything imagined when the vehicle was designed. It served longer than anyone intended.
1989, a dusty proving ground in northern Australia. A vehicle that looked wrong, too light, too fast, too reliant on rubber. It had no depleted uranium armor. It had no active protection system. Its aluminum hull stopped rifle bullets and shell splinters and nothing else without help. In the years that followed, its crews bolted cage armor to its flanks, lined its interior with Kevlar, mounted remote weapon stations above its hatches, and asked it to survive weapons it was never built to face. In East Timor, it stabilized a collapsing capital. In Baghdad, it absorbed a car bomb and brought its crew home. On Route Bismarck, it survived a blast that defense correspondents said would have killed its counterparts. In Uruzgan, it climbed mountains that should have stopped a wheeled vehicle cold, and it made the Taliban hesitate to engage. Only one man died inside it in two decades of combat. His name was David Pearce. His crew called him Poppy. The critics were right that the ASLAV was lightly protected. They were wrong about what lightly protected means when the vehicle is
fast, reliable, amphibious, fit for the climate, armed with a gun that reaches to 3,000 m, and crewed by soldiers who know how to use it. 257 vehicles, two wars, 30 years. That is not luck. That is Australian cavalry doing exactly what cavalry has always done, finding a way through when heavier forces could not move at all.
