Why This ‘Crude’ South African Truck Made the US Army Spend Four Billion Dollars To Copy It D
1976, a corrugated gravel track in November, northern southwest Africa, 200 km from the Angolan border, a group of South African Defense Force officers stood in the dust and midday heat, arms folded, watching a prototype vehicle sit motionless above a buried anti-tank mine. Nobody moved toward it.
Inside the vehicle, strapped to the driver’s seat, was a sedated baboon. The blast came without warning. The mine detonated. The vehicle lurched sideways. Steel plates warped. Dust and smoke billowed into the afternoon sky. When the cloud cleared, the baboon was alive. The animal had a cut lip.
It had survived a Soviet anti-tank mine detonation with a cut lip. The officers uncrossed their arms. The vehicle looked absurd. It sat high off the ground on an ungainainely suspension. Its hull angled sharply underneath in a way that looked nothing like a proper armored vehicle. It looked like something assembled in a farm workshop, not a defense plant.
Skeptics called it primitive. Military traditionalists dismissed the entire philosophy behind it. The idea that you could defeat a buried mine simply by shaping the floor of a vehicle at an angle seemed too simple to be serious. They were wrong. The vehicle’s direct descendants would serve in over 20 nations, survive hundreds of IED strikes that would have vaporized a Humvey, and forced the most powerful military force in the world to spend $4 billion acquiring vehicles built around the same principle. Its designation was the RG31 Nala. and it was the vehicle that carried Africa’s hardest earned lesson into the wars of the 21st century. To understand why the RG31 existed, you need to understand what the South African Defense Force had been fighting since 1966. The border war waged across northern Southwest Africa, Southern Angola, and the Caprivy Strip was not fought with tanks or masked artillery. It was fought with buried metal. Soviet supplied anti-tank mines, principally
the TM46 and the heavier TM57 were planted in their thousands beneath the gravel roads of Oambberland. South African soldiers and police riding in Bedford trucks and standard military vehicles were being killed by them regularly. The conventional answer, copying Western armored vehicle designs, was not working.
Flat floors and low ground clearance turned vehicles into pressure plates. When a mine detonated beneath a flat hull, there was only one direction for the energy to go. upward through the crew compartment through the men inside. The engineer who ended that was Dr. Vernon Joint working at the Council for Scientific and Industrial Research in Pritoria.
Joint’s logic was elegant and unforgiving. A V-shaped hull angled sharply from the center line outward and downward redirects blast energy to the sides rather than channeling it vertically through the floor. Combined with maximum ground clearance, which attenuates the shock wave before it reaches the hull at all, the principle could convert a lethal mine strike into a survivable one.
A third principle followed naturally from the embargo South Africa was operating under. All replacement parts had to be commercially available. No military supply chain, no specialist components that could be denied by sanctions. The 1976 baboon test was proof of concept, made theatrical for the benefit of skeptical generals. It worked.
Joint’s team had already produced the Hyena and the Hippo before settling on the Buff in 1978, a Unimog based mineprotected troop carrier. The Buff was followed by the Casper in 1979. Then, as South Africa’s arms industry matured and evolved through the embargo years, smaller and more refined designs emerged for export and multi-roll operations.

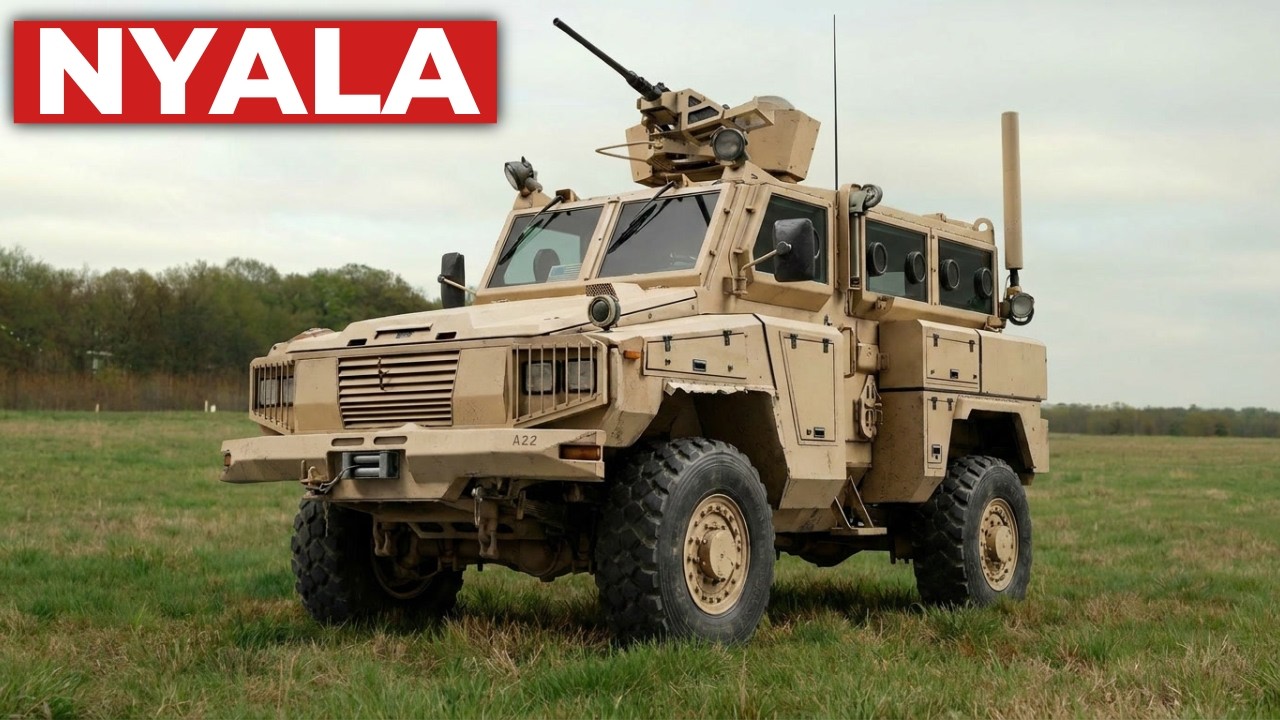

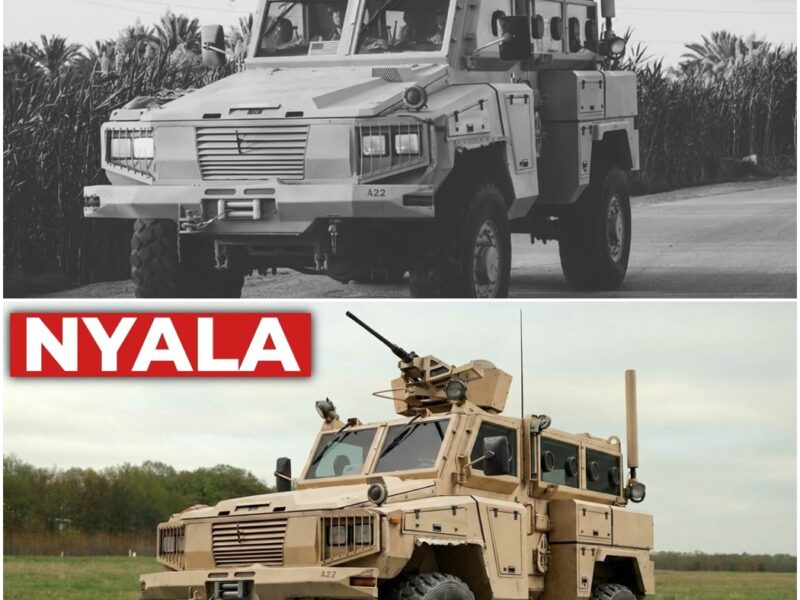

The RG31 Nala was the mature expression of that entire lineage. First produced in 1996 by TFM Industries and later by Romech OMC, Vicers OMC, Alvis OMC and ultimately BAE Systems Land System South Africa all at the same factory in Benoni Gaeng. The Nala carried the same core philosophy that had been tested on baboons and refined in blood across 20 years of border war.
The vehicle itself was built around an uncompromising set of priorities. The Mark 5 variant, which became the dominant export and operational model, was powered by a Cummins QSB 6.7 L 6-cylinder turbocharged diesel producing 275 horsepower, coupled to an Allison automatic transmission with six forward ratios.
The drivetrain was entirely commercial. A soldier did not need specialist knowledge or a military supply chain to keep it running. In wars where logistics chains snap under pressure, that is not a minor detail. It is the difference between a vehicle that fights and a vehicle that sits at a forward operating base waiting for parts.
The combat weight in the Mark 5 configuration was approximately 12 metric tons. Top speed on paved road reached 105 kmh. The operational range approached 900 km. The hull carried 10 occupants, driver plus nine passengers in combat configuration. A pintlemounted machine gun sat on the roof by default. Canadian vehicles were fitted with the Kongsburg Protector remote weapon station, allowing the gunner to engage targets from inside the sealed hull without exposing his body above the armor line.
The number that defined the vehicle, the number that explained why two dozen nations wanted it, was buried in the protection specification. The RG31 was designed to withstand the simultaneous detonation of 14 kg of TNT under any wheel. that is two Soviet TM57 anti-tank mines. The precise weapons that had been killing soldiers in Omberland for two decades.
Under the belly, it could absorb 7 kg at the center. The hull was sealed, the floor angled, and the seats internally damped to absorb residual blast impulse. The vehicle was not designed to look formidable. It was designed to make the mine irrelevant. Now, before we get into where the Nala fought and what it endured, if you are finding this worthwhile, subscribe now.
It costs nothing. It takes 1 second and it helps the channel keep going. The first NATO military to acquire the RG31 was Canada and the decision was not made in a procurement review. It was made after two men died. On the 2nd of October 2003, Sergeant Robert Short and Corporal Robbie Beer and Fanger were killed when their ILtis light vehicle struck a landmine on a road in the Carbal region of Afghanistan.
The ILtis was a small utility Jeep with no mine protection whatsoever. The deaths provoked public and parliamentary outrage. In November 2005, Canada contracted General Dynamics Land Systems Canada for 50 RG31 Mark IIIs, 60 million Canadian dollars with an option for 25 more that was exercised the following May.
75 vehicles arrived in Kandahar by early 2006, fitted with the Kongsburg remote weapon station, replacing the lightly armored G Wagons that had filled the gap after the illus disaster. Through most of 2006, Canadian troops patrolling the roads around Kandahar climbed out of their nalas after IED strikes with minor or no injuries.
In September 2006, a suicide bomber drove a vehicle directly into a Canadian RG31. The hull was damaged. All four soldiers inside walked away. Then came the 4th of July 2007. A patrol from the third battalion of Princess Patricia’s Canadian Light Infantry was moving on a gravel road southwest of Kandahar City. The IED buried beneath it was, by the engineering assessment of the specialists who examined the scene, the largest improvised explosive device the Canadians had encountered in the entire Afghan campaign. Six soldiers and an Afghan interpreter were killed. Among the dead were Captain Matthew Jonathan Door, Master Corporal Colin Bas, Corporal Cole Bart, and Private Lane Watkins. The wreckage of the vehicle was photographed by dozens of journalists and distributed globally. There are two ways to read that event. One reading concludes that the Nala had failed. The other reads the engineering correctly. The RG31 was designed to withstand 14 kg of TNT under a wheel. The July 2007
device was orders of magnitude beyond that specification. No light patrol vehicle in any army’s inventory would have offered more. The vehicle did not fail. It met its design limits precisely, consistently right up to the moment someone buried something categorically beyond them in the ground. The United States arrived at the RG31 through a different and longer route.
In Anbar province in 2004 and 2005, Marine Corps commanders had been recording a pattern that demanded attention. In over 300 IED strikes on a different mineprotected vehicle, the Cougar, built by Force Protection Industries in South Carolina. Not one Marine had been killed inside the hull.
A formal urgent universal need statement from Brigadier General Dennis Hedgick traveled up the chain of command. Congress authorized $4 billion in May 2007 for an emergency mine resistant ambush protected vehicle procurement. The RG31 was among the first qualifying designs in production and ready for delivery.
In October 2006, the US Army had already ordered 60 RG31 Mark 5s, raised almost immediately to 94 vehicles. January 2007 brought a further order for 169. By August 2007, the US Marine Corps awarded a $338 million contract for 600 Category 1 RG31s. In July 2008, a further $550 million contract covered 773 Mark 5e vehicles for the Marines.
When the procurement cycle closed, the United States Army, US Marine Corps, and Special Operations Command collectively operated over 2,000 RG31 variants across Iraq and Afghanistan. Admiral Mike Mullen, chairman of the Joint Chiefs of Staff, said the vehicles had absorbed hits that would have killed soldiers and marines in unarmored Humvees.
By mid 2008, the reduction in roadside bomb fatalities among US forces had reached approximately 90% from their peak years. Spain fielded 150 RG31 Mark 5 in Lebanon under UNIFIL and in Afghanistan under ESAF. On the 18th of June 2011, a Spanish Nala struck an EED in Afghanistan. Spanish Defense Minister Kam Shakon said publicly that the armored vehicle had prevented a far greater catastrophe.
She was not using diplomatic language. The comparison vehicle in that situation, a flatbottomed light patrol truck, would not have left survivors. The Nala did. The United Arab Emirates acquired 253 customized Mark 5 variants, including the Agra mortar carrier mounting a 120 mm breach loaded system. UAE nalas have been in continuous operational use in the Yemen conflict since 2015.
On paper, the RG31 competed against American vehicles that appeared far more capable. The Cougar, built by Force Protection Industries in South Carolina, was heavier, larger, and offered marginally more hull volume and blast protection headroom. Britain chose the Cougar, acquiring it as the Mastiff and Ridgeback, citing its protection ceiling.
The United States bought approximately 4,000 Cougars. Both the Cougar and the RG31 owed their existence to the same engineering lineage. Dr. Vernon Joint, the man who built the Buffalo and the Casper and conceived the Vhull philosophy, became a consultant to force protection industries in 2004. He carried across the Atlantic the logic that the South African Defense Force had paid for in blood across the 1970s and 1980s.
The South African mine protection tradition did not merely influence the MAP program. It fathered it. The International Max Pro built by Navastar Defense with armor from Israel’s Placen Sasa became the most numerous MAP in American service with 7,474 units ordered. It was faster to produce and cheaper per unit. It was also topheavy and in the broken terrain of Helman Province.
Rollovers became a secondary threat. The first American MAP combat fatality in January 2008 occurred when a Max Pro rolled after a massive detonation and killed the exposed turret gunner. The three crew sealed inside the hull survived. Against the Humvey, there was no comparison to make. The highmobility multi-purpose wheeled vehicle was never designed for mine survivability. Its flat hull sat low.
Its belly plates offered minimal standoff, and its crew compartment was built for mobility, not blast attenuation. Improvised explosive devices accounted for over 70% of United States combat deaths in Iraq between 2004 and 2007. No armor kit bolted to a Humvey’s doors solved that problem because the problem was beneath the vehicle, not beside it.
Approximately 2,500 RG31 Nalas were built across all marks and operators. The vehicle remains in active service with Spain, the United Arab Emirates, the South African National Defense Force, and several UN peacekeeping missions. Canada retired its fleet around 2016. The United States Army retains an upgraded fleet for route clearance.
Refurbished at Letkeny Army Depot with 300 horsepower engines, independent suspension, and improved gunner protection. Scheduled to remain operational through the coming decade. 1976. The dust settled. The baboon had a cut lip. The RG31 Nala was not elegant. It was not fast across broken ground. Its height and weight demanded constant driver skill in the mountains of Helmond.
It had no integrated offensive armorament. Its baseline ballistic protection was adequate but not exceptional against the very largest buried devices. It could not protect the men inside. And yet it worked. It worked on the gravel roads of Kandahar. It worked in the streets of Ramadi and Fallujah. It worked in southern Lebanon and in the dust of the Capri Strip.
It worked because Dr. Vernon joint understood four decades before the Pentagon did that the most dangerous ground in a counterinsurgency is not in front of the vehicle. It is underneath it. That is not an accident.
